>30mJ DPSS Laser
50-200ns tunable pulse width!
Parameter |
Specifications |
Wavelength |
1064nm |
Pulse Repetition Rate |
1-20Hz |
Average Power |
up to 500mW |
Pulse Energy |
30mJ |
Pulse width |
50-200ns tunable |
Long Term Operating Instability |
< 5% over 2 hours |
Beam Diameter |
4 mm |
Pulse Instability |
<3% rms |
Beam Mode |
Multimode |
Polarization Ratio |
>100:1 linear |
Polarization Direction |
Vertical |
Pointing stability, Full Angle |
X< 50 ¦Ìrad/ Y< 50 ¦Ìrad |
Warm-Up Time, From Cold |
<30 minutes |
Warm-Up Time From Standby |
<15 minutes |
Operating Ambient Temperature |
Room temperature |
Power Requirement |
110VAC, 10A |

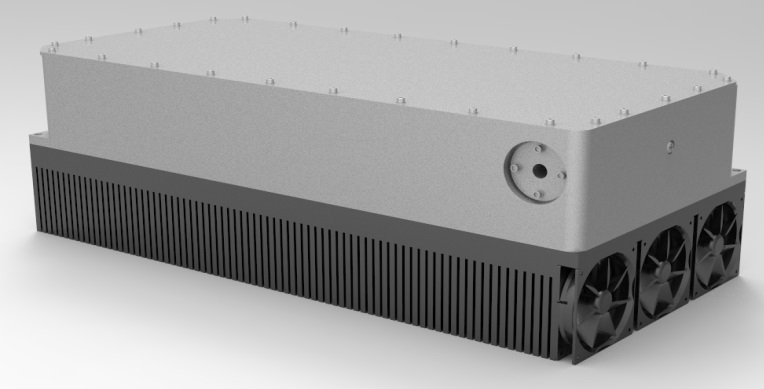

Laser Head |
5¡Á6¡Á18 inch3, 20lb |
Laser Driver |
3.5¡Á8¡Á17 inch3, 10lb |
Laser Chiller |
5¡Á7¡Á7.5 inch3, 5lb |
|
